Description

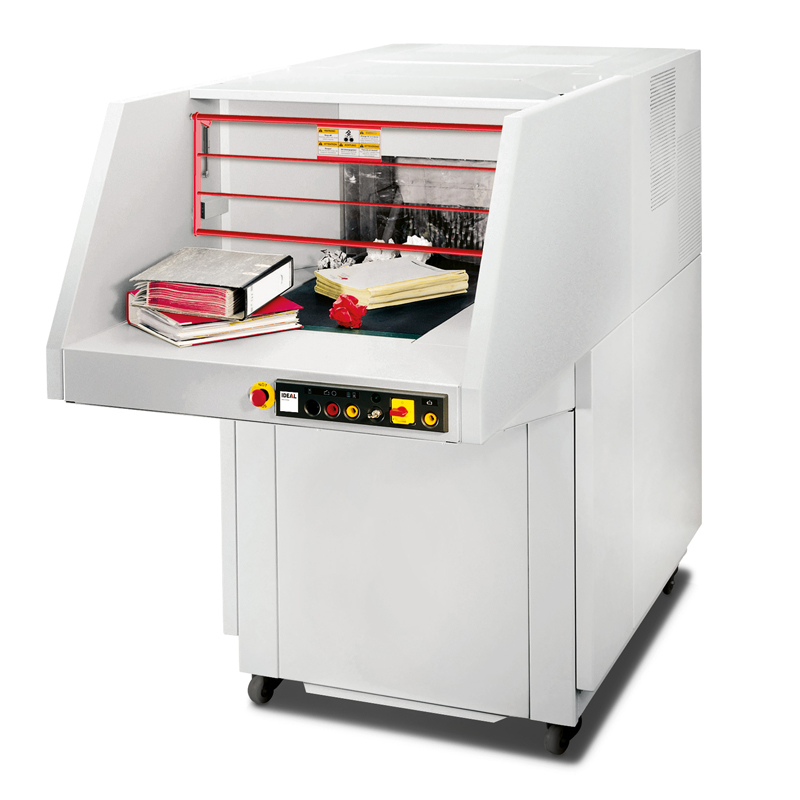

Model: IDEAL 5009-2-CC 8×40-80 mm
About This Shredder:
Powerful high-capacity document shredder with conveyor belt and 300-litre capacity – ideal for centralised destruction sites for large quantities of paper.
The IDEAL 5009 high-capacity shredder is specially designed for the efficient destruction of large quantities of paper or entire file folders. With security level P-2 and a particle cut (8 x 40-80 mm), it is perfectly suited for general documents without special security requirements.
The conveyor belt system ensures a seamless feed and allows the collection cart to be changed during operation – thus doubling productivity. Thanks to 2-MATIC technology, the shredder automatically adjusts the operating speed to the amount of paper.
The central lubricating oil system continuously maintains the cutting mechanism and ensures consistent performance. Driven by two powerful 4.5 kW three-phase motors, the shredder reliably handles even extreme demands in continuous operation. The spacious 300-liter shredded material container guarantees long work cycles without frequent emptying.
The intuitive, ergonomic control panel allows for clear control of all functions. For the IDEAL 5009, “Made in Germany” stands for outstanding quality, durability, and spare parts availability for up to 15 years – ideal for central locations with high throughput requirements.
Features:
- Conveyor belt system for fast and uninterrupted paper processing.
- Security level P-2 – ideal for general documents in large quantities.
- 2-MATIC technology automatically adjusts the speed to the amount of paper.
- Central lubrication system for even maintenance and constant performance.
- Two 4.5 kW three-phase motors for maximum performance in continuous operation.
- The 300-liter cutting material cart ensures long working cycles without interruption.
- Ergonomic control panel with clearly arranged push buttons and indicator lights.
- Robust cutting mechanism made of hardened special steel for high durability.
Technical Specification:
- Sheet capacity (70gsm): 600-700 sheets
- Shred Capacity (80gsm): 500-600 sheets
- Shred type: Strip cut
- Shred size (mm): 8 x 40-80 mm
- Security Level: P2
- Throat size (mm): 500mm
- Shred speed (m/s): 0.21 m/s or 0.12 m/s (variable via “2-MATIC”)
- Auto Start/Stop: Yes
- Thermal overload protection: Yes
- Safety cut-out on bin removal: Yes
- Automatic oil injection: Yes
- EASY-SWITCH – intelligent multi-function control: Yes
- Shred Media: Paper, Staples and paper clips, floppy disks, complete file folders
- Caster: Yes
- Continuous Run: Yes
- Bin capacity (litres): 300L (disposable plastic bag)

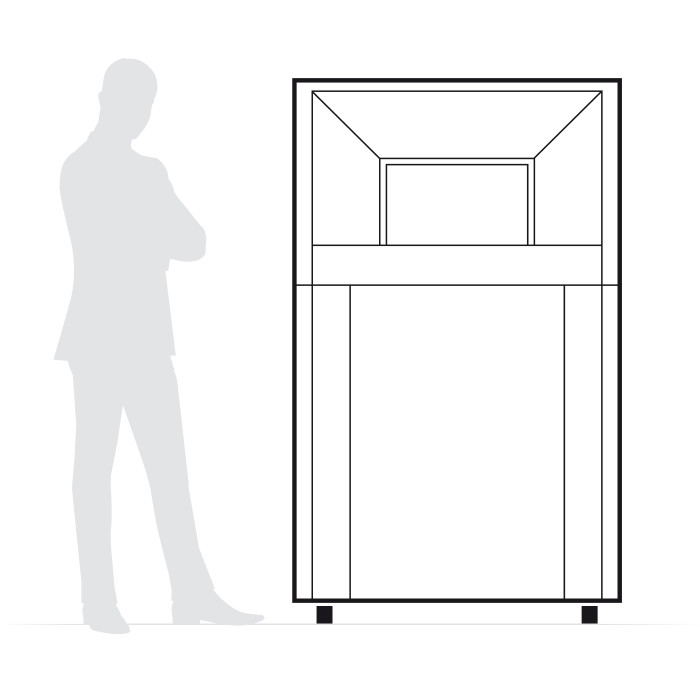

- Machine size (mm): 1714 x 1036 x 2170 (H x W x D)
- Net Weight (kg): 1130 kg
-
Motor capacity: 9 kW | 3 kW three phase motor
Optional accessory: for IDEAL 5009-2 CC and IDEAL 5009-3 CC
