Model: IDEAL 5009-3-CC 6 x 50 mm
About This Shredder:
Efficient high-capacity document shredder with conveyor belt and large collection volume – ideal for high paper volumes and central destruction locations.
The IDEAL 5009 high-capacity shredder sets standards in the destruction of large quantities of general documents. With security level P-3 and particle cut (6 x 50 mm), it is ideal for central locations with a high volume of paper.
The conveyor belt system ensures a continuous paper supply and minimizes downtime, while the 2-MATIC speed technology automatically adjusts the performance to the amount of paper fed in. The robust cutting unit made of hardened special steel offers the highest reliability in continuous operation.

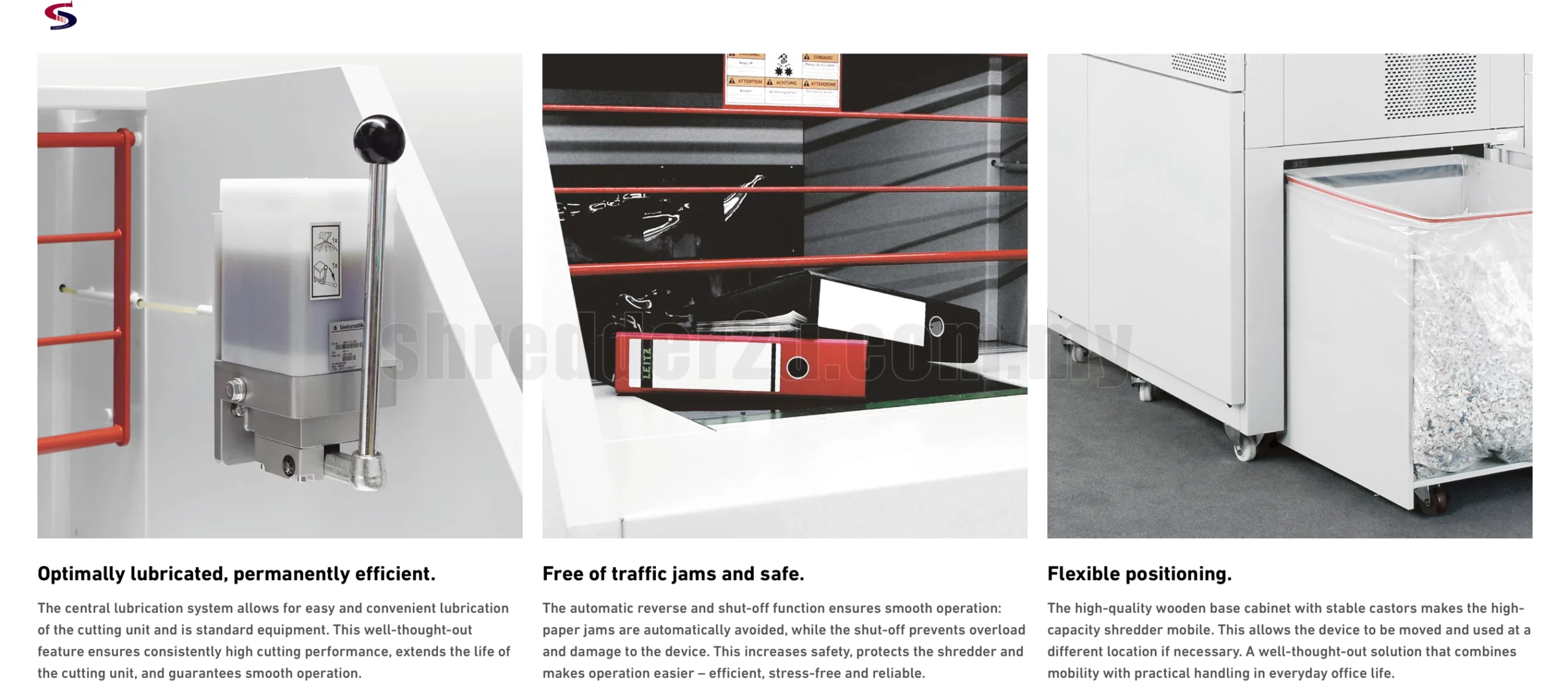

The central lubricating oil system keeps the cutting performance consistently high and reduces maintenance requirements. Two powerful 4.5 kW three-phase motors guarantee maximum performance even with intensive use. The generous 300-liter cutting material cart allows for long operating times without interruption.

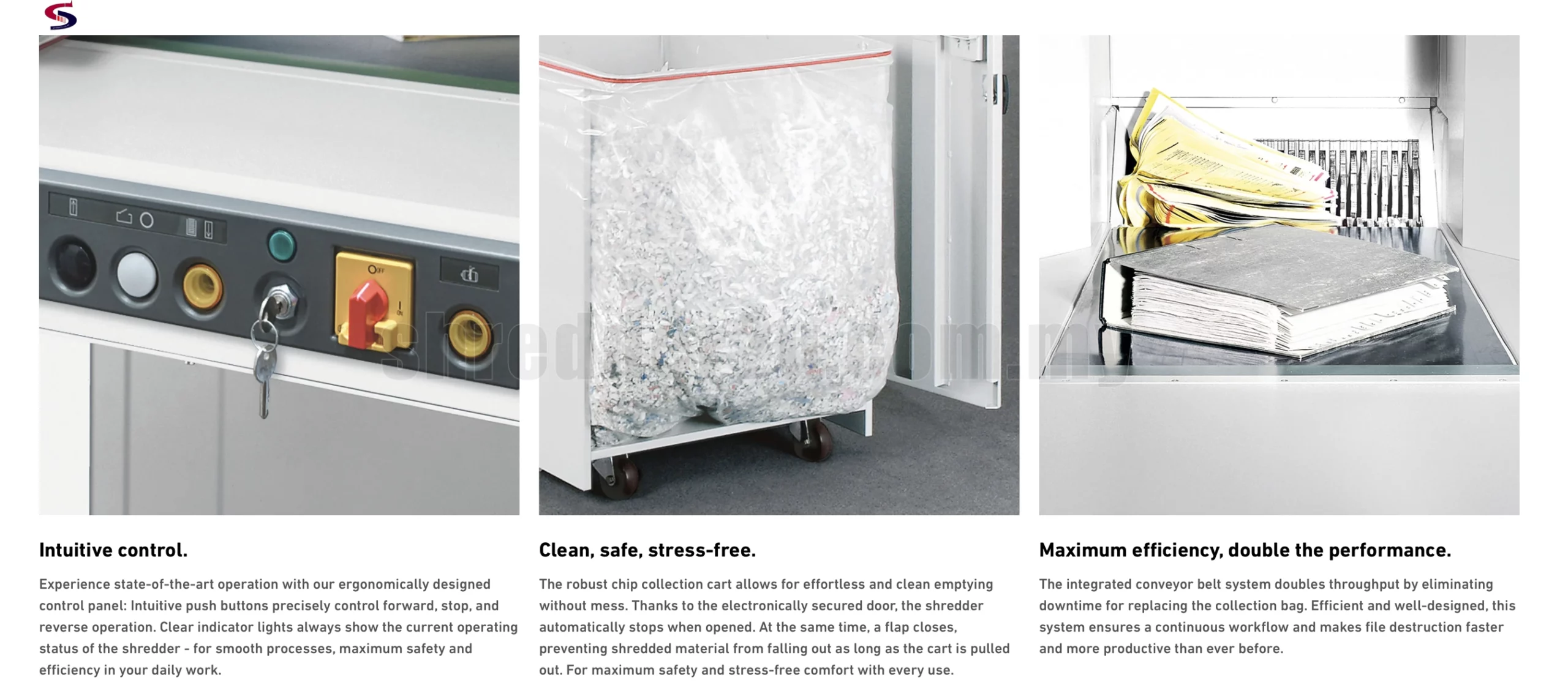

The ergonomic control panel with clearly arranged push buttons and indicator lights makes operation easier. Made in Germany, the IDEAL 5009 impresses with its durability, quality and sustainable construction – perfect for professional use in large quantities.
Features:

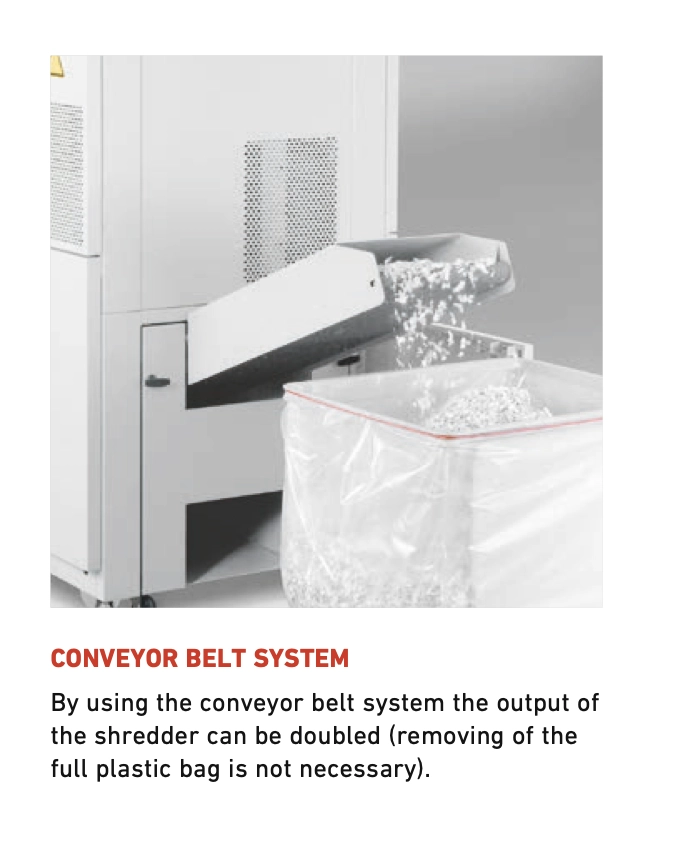

- Conveyor belt system for fast and efficient work with large quantities.
- Security level P-3 – efficient for general documents in large quantities.
- 2-MATIC speed technology for optimized work performance.
- Centralized lubricating oil system for consistently high cutting performance.
- Two powerful 4.5 kW three-phase motors for intensive continuous use.

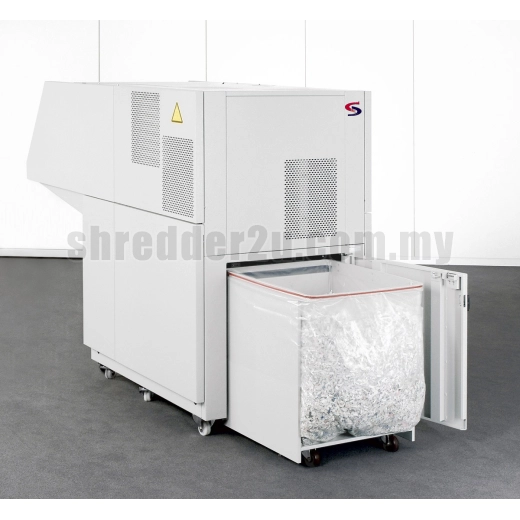

- 300-liter cutting waste cart minimizes downtime during emptying.
- Intuitive operation thanks to an ergonomic control panel with indicator lights.
- Robust cutting unit for long-term reliable performance.
Technical Specification:
- Sheet capacity (70gsm): 300-400 sheets
- Shred Capacity (80gsm): 250-350 sheets
- Shred type: Cross cut
- Shred size (mm): 6 x50 mm
- Security Level: P3
- Throat size (mm): 500mm
- Shred speed (m/s): 0.21 m/s or 0.12 m/s (variable via “2-MATIC”)
- Auto Start/Stop: Yes
- Thermal overload protection: Yes
- Safety cut-out on bin removal: Yes
- Automatic oil injection: Yes
- EASY-SWITCH – intelligent multi-function control: Yes
- Shred Media: Paper, Staples and paper clips, floppy disks, complete file folders
- Caster: Yes
- Continuous Run: Yes
- Bin capacity (litres): 300L (disposable plastic bag)
- Machine size (mm): 1714 x 1036 x 2170 (H x W x D)
- Net Weight (kg): 1130 kg
-
Motor capacity: 9 kW | 3 kW three phase motor
Catalogue: IDEAL 5009-3-CC Industrial Paper Shredder (PDF)
Optional accessory: for IDEAL 5009-2 CC and IDEAL 5009-3 CC
| Cut Type | Cross Cut |
|---|---|
| Shred Size | 6x50mm |
| Sheet Capacity | 400 sheets (70gsm) |
| Security Level | P-3 |
| Insertion Width | 500 mm / A2 |
| Bin Size Volume | 300 litres |
| Continuous Duty | Continuous |
| Machine Weight | 1130 kg |
| Machine Dimensions | 1714 x 1036 x 2170 mm (H x W x D) |
| Motor Power | 9 kW |
| Power Supply | 400 V / 50 Hz / 3-phase |
| Warranty | 2 Years |
